XCMT25A
特点：
Case: Black Noryl
Pin: Tin-Plated Copper
Wave Solderable & Washable
规格:
◆Value applying at (rated voltage,1000Hz, 1/2 duty square wave)
◇Value applying at (1000Hz,sine wave,measuring current 60μA)
Case: Black Noryl
Pin: Tin-Plated Copper
Wave Solderable & Washable
规格:
|
type
|
unit
|
XCMT25A1506PX
|
XCMT25A1512PX
|
|
◆Min. Sound Output at 10cm
|
dB
|
80
|
80
|
|
Rated Voltage
|
V
|
6
|
12
|
|
Operating Voltage
|
V
|
3~7
|
8~14
|
|
Resonant Frequency
|
Hz
|
1000~1500
|
1000~1500
|
|
◆Max. Current Consumption
|
mA
|
70
|
55
|
|
Coil Resistance
|
Ohm
|
36±5
|
120±12
|
|
◇Coil Impedance
|
Ohm
|
48
|
155
|
|
Operating Temperature
|
℃
|
-20~+70
|
-20~+70
|
|
Storage Temperature
|
℃
|
-30~+80
|
-30~+80
|
|
Weight
|
g
|
10
|
10
|
◇Value applying at (1000Hz,sine wave,measuring current 60μA)

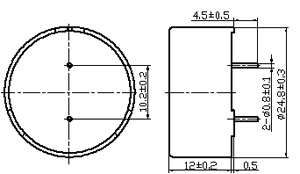

尺寸：（单位：mm） |

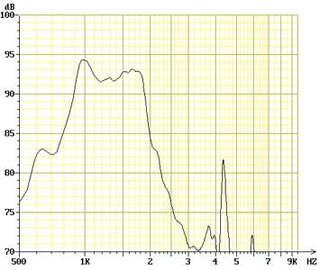

录放幅频响应： |
