XCMT08A

特点：
SMD TYPE
Case: Black PPS

规格:

type	Unit	XCMT09A2701SS	XCMT09A2401SS	XCMT09A2703SS
◆Min. Sound Output at 10cm	db	80	80	85
Rated Voltage	V	1.5	1.5	3
Operating Voltage	V	1.2~1.7	1.2~1.7	3~4.5
Resonant Frequency	Hz	2350	2730	2730
◆Max. Current onsumption	mA	80	80	80
Coil Resistance	Ohm	5.5±2	5.5±2	17±3
◇Coil Impedance	Ohm	9	9.5	40
Operating Temperature	℃	-20~+70	-20~+70	-20~+70
Storage Temperature	℃	-30~+80	-30~+80	-30~+80
Weight	g	0.6	0.6	0.6

◆ Value applying at (rated voltage,resonant frequency, 1/2 duty square wave)
◇ Value applying at (resonant frequency, sine wave, measuring current 60μA)

尺寸：（单位：mm）

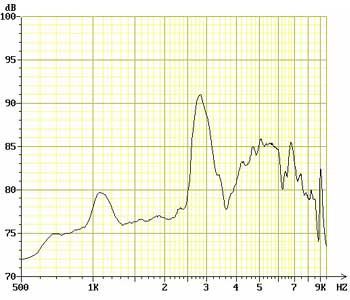

录放幅频响应：
