XCMT10B
特点：
Cae: Noryl,Black
Pin: Tin-plated copper
Reflow Sderable and Washable
规格:
◆Value applying at (rated voltage, 2731Hz, 1/2 duty square wave)
◇Value applying at (2731Hz,sine wave,measuring current 60µA)
Cae: Noryl,Black
Pin: Tin-plated copper
Reflow Sderable and Washable
规格:
|
TYPE
|
UNIT
|
XCMT10B2701S
|
XCMT10B2703S
|
XCMT10B2705S
|
|
◆Min. Sound Output at 10cm
|
dB
|
85
|
86
|
87
|
|
Rated Voltage
|
V
|
1.5
|
3
|
5
|
|
Operating Voltage
|
V
|
1～2
|
2～4
|
4～6
|
|
Resonant Frequency
|
Hz
|
2731
|
2731
|
2731
|
|
◆Max. Current Consumption
|
mA
|
80
|
70
|
70
|
|
Coil Resistance
|
Ω
|
6±1
|
16±2
|
40±2
|
|
◇Coil Impedance
|
Ω
|
15
|
35
|
80
|
|
Operating Temperature
|
℃
|
-20～+70
|
-20～+70
|
-20～+70
|
|
Storage Temperature
|
℃
|
-30～+80
|
-30～+80
|
-30～+80
|
|
Weight
|
g
|
0.6
|
0.6
|
0.6
|
◆Value applying at (rated voltage, 2731Hz, 1/2 duty square wave)
◇Value applying at (2731Hz,sine wave,measuring current 60µA)

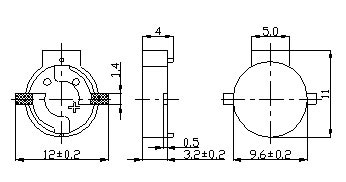

尺寸：（单位：mm） |
录放幅频响应： |
