XCMT23B
特点：
Case: LCP,Black
Pin: Tin-plated copper
规格:
◆Value applying at (rated voltage, 2731Hz, 1/2 duty square wave)
◇Value applying at (2731Hz,sine wave,measuring current 60µA)
Case: LCP,Black
Pin: Tin-plated copper
规格:
|
PARTNUMBER
|
UNIT
|
XCMX23B0403P
|
XCMX23B0406P
|
XCMX23B0412P
|
XCMX23B0424P
|
|
Rated Voltage
|
(VDC)
|
3
|
6
|
12
|
24
|
|
Operating Voltage
|
(VDC)
|
2-4
|
4-9
|
9-15
|
20-28
|
|
Max. Current Consumption
|
(mA)
|
25
|
25
|
25
|
25
|
|
Min. Sound Output
|
(dB)
|
80/at 30 cm
|
80/at 30 cm
|
80/at 30 cm
|
80/at 30 cm
|
|
Resonant Frequency
|
(Hz)
|
400±100
|
400±100
|
400±100
|
400±100
|
|
Operating Temperature
|
(℃)
|
-20 - +60
|
-20 - +60
|
-20 - +60
|
-20 - +60
|
|
Storage Temperature
|
(℃)
|
-30 -+70
|
-30 -+70
|
-30 -+70
|
-30 -+70
|
|
Response Time
|
(ms)
|
≤50
|
≤50
|
≤50
|
≤50
|
|
Weight
|
(g)
|
8
|
8
|
8
|
8
|
|
Case Material
|
Case Material
|
white/ABS
|
white/ABS
|
white/ABS
|
white/ABS
|
|
Tone Nature
|
Tone Nature
|
Continuous
|
Continuous
|
Continuous
|
Continuous
|
|
Pin
|
Pin
|
Tin-plated copper
|
Tin-plated copper
|
Tin-plated copper
|
Tin-plated copper
|
◇Value applying at (2731Hz,sine wave,measuring current 60µA)

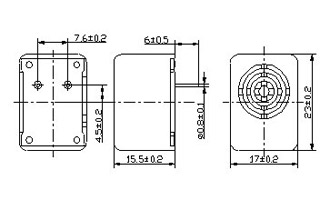

尺寸：（单位：mm） |
录放幅频响应： |
