XCMT09G

特点：
Case:Noryl Black
WIRE:AWG 32

规格:

TYPE	UNIT	2603W
◆Min. Sound Output at 10cm	dB	85
Rated Voltage	V0-p	3.6
Operating Voltage	V0-p	2.9～4.3
Resonant Frequency	Hz	2630
◆Max. Current Consumption	mA	130
Coil Resistance	Ω	12±2
◇Coil Impedance	Ω	15
Operating Temperature	℃	-20～+70
Storage Temperature	℃	-40～+85
Weight	g	0.4

◆Value applying at (rated voltage, resonant frequency, 1/2 duty square wave)
◇ Value applying at (resonant frequency, sine wave,measuring current 60µA)

尺寸：（单位：mm）

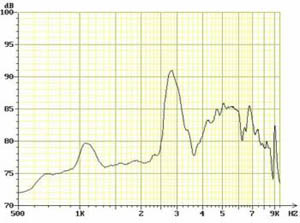

录放幅频响应：
